Your Current Location: Home > Printing & Finishing > Electric Paper Cutter

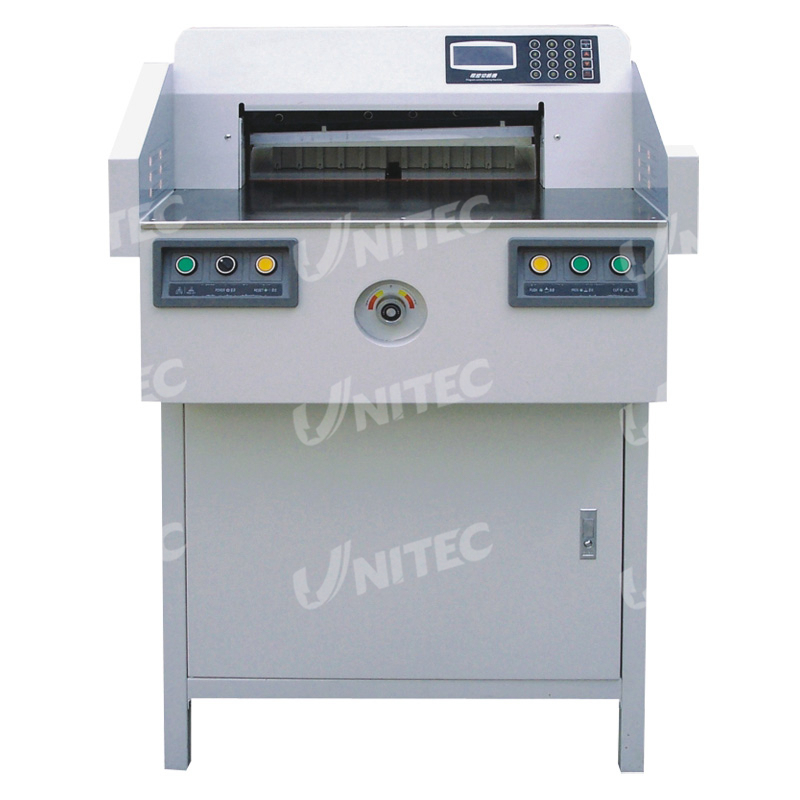

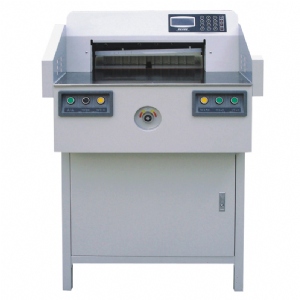

BW-520V

Roll over the image above to zoom or view large image

Programmable Paper Cutter
With Power Backgauge

Technical Datails:
◆Electronic keypad LCD display allows
indication accuracy to .01"
◆Electro-mechanical Blade and clamp drive
◆Programmable control, Memory key for repeat cuts
◆Optical cutting line, two side guides
◆Light beam safety to secure the working area
◆Digital display for measurement
readout in CM or INCHES

Product
Details
Certificate

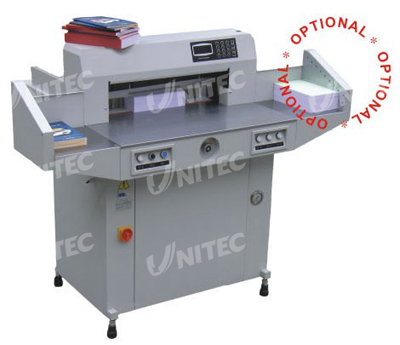

BW-520V with side table(optional)

Specification:

Model	BW-520A	BW-520V
Cutting Length	520mm	520mm
Cutting Heigh	65mm	65mm
Table Depth	550mm	550mm
Narrow Cut	30mm	30mm
Paper Press system	manual spindle clamp	antomatic clamping system
Paper Push system	manual hand wheel	power backgauge
Power Supply	AC110、220V/60、50Hz	AC110、220V/60、50Hz
Motor Performance(input capacity)	900W	1400W
Dimension(H×W×D)	1280×980×1200mm	1280×1100×910mm
Weight	190.0kgs	190.0kgs

CE BOWAY Paper Cutter 520V.pdf
